Mobile App - iOS

Installation#

Installation from App Store or via TestFlight

The application is currently available only via TestFlight.Registration as a tester is needed.

Minimum requirements#

  • iOS 13 compatible iPhone or iPad or newer (iPhone 6S/SE or newer)

User Guide#

Application Start and Permissions#

The application can be run by selecting it in the list of applications.

  • Make sure to grant permissions to access the device’s location and take pictures:
  • Access device’s location

  • Allow to add location data to token photos

  • Receiving different types of location data

  • Recording paths

  • Take pictures and record video
  • Allow to take photos by camera.

To log in to the application, connection to the internet is required. After the first login, the user will be remembered. A new login will only be required after explicit logout.

Login#

After the first launch of the application and granting all the necessary permissions to the application, the user will be presented with a login screen (Fig. 19), where the assigned login and password will need to be filled out. Click the Sign In button to complete the login.

To successfully log in, all data most be entered correctly and the device should be connected to the Internet at the time of login. The login details will be remembered for future uses of the app. Re-login will be required only after explicit logout of the user.

Fig. 20 Login screen

Through the "Select Server" button, it will be possible to set the URL of a custom server that will be used instead of the app's default server. Once you have logged in, in order to return to the default server, you will need to perform a logout and deselect the custom server.

Fig. 21 Select Server

Main Screen#

The attributes of the host device are displayed in the “Basic Info” section. Traffic lights are displayed next to some of the attributes. Their detailed description is given below.

  • Location service check

  • The green color indicates the active ability of the phone to determine its current location.

  • Red means an inability to determine your current position. If this is the case, location services on the device may be disabled.

Other attributes use the green or yellow color.

Green indicates that the device has that particular property. Yellow indicates that the device does not have the given property or has not yet been able to verify the given availability and may change to green over time.

  • Galileo capability
  • Checks if the device is capable to read Galileo signals

Fig. 22 Main screen

The application modules can be accessed through by pressing buttons which are situated in the bottom of the screen. The following options are available:

  • Photos
  • Open screen with list of unowned photos.
  • Tasks
  • Open screen with task list.
  • Map
  • Open screen with map including all captured photos, recording new paths or viewing already recorded paths.
  • Settings
  • Open screen with settings.
  • About
  • Open screen with basic information about application

Task List#

In the task overview (Fig. 21), user tasks are listed by name, status, number of captured images, creation date and due date. By clicking on a specific task, a screen with details and options to edit is displayed.

Fig. 23 Task list

Tasks can be set in following states, which also determine their editability:

Description

Editable

Forma5

New
A new task

YES

Forma6

Open

A new task, which has been already displayed by the user. The user is aware of the task.

YES

Forma7

Returned
The has been returned by the officer to the user with an additional information request.

YES

Forma8

Data provided

The task which was completed and sent by the user to the PA

NO

Task detail#

The task detail (Fig. 22) shows the data attributes of the task, including all captured images. Depending on the status of the task, the task can either be edited or viewed.

  • The upper section lists the basic data attributes of the task.

  • The Instructions section shows the description needed to complete the task given by an authorized staff member of the Paying Agency (PA).

  • The Reason for return section describes the reason for the Paying Agency (PA) why the task was returned for a new performance.

  • The Note section is completed by the user as part of completing the task before it is submitted.

  • The photo section shows thumbnails of photos taken. The user takes photos by clicking the , which enters the camera mode for shooting (Camera Mode). Tap to delete the currently displayed .

  • Use the buttons Previous and Next to move between photo previews.

A photo cannot be deleted if it has been already sent to the server, even if the task is in an editable state.

Click the SEND button to send the message. After successful submission, the task can no longer be edited.

Fig. 24 Task edit

Clicking on the photo preview will open a window with its detail (Fig. 23). The basic attributes of the photo are displayed in the upper left corner. In this view, you can switch views between all photos of the task using the buttons image60.png and image54.png .

Fig. 25 Photo detail

Standalone Snapshots#

Screen showing photos in the list (Fig. 24) taken separately outside the task. In each list item, on the left is a preview of the photo and on the right a list of basic metadata.

Fig. 26 Overview of standalone photos

From this screen, new photos are taken by touching of a button NEW, which enters the user to take camera mode (Camera Mode).

Clicking on a photo item in the list opens its detail (Fig. 25). Click the SEND button to send the photo to server.

Fig. 27 Detail of a standalone photo

It’s possible to export a PDF file with the relevant data of the picture with the “PDF” button on the bottom.

Camera Mode#

A camera screen interface is used to take a single photo or a photo for a task (Fig. 26).

Fig. 28 Camera mode screen

The basic location data is displayed in the upper left corner:

  • Latitude indicates the latitude in degrees.

  • Longitude indicates longitude in degrees.

  • Altitude indicates the height above the reference surface of the WGS 84 ellipsoid.

  • Accuracy is an estimate of horizontal accuracy as the radius of reliability.

  • Image azimuth indicates the azimuth of the horizon the camera captures.

  • The angle expresses, in degrees, the tilt of the vertical axis of the screen to project on the horizontal surface of the earth.

If shooting with position center of gravity calculation is enabled in the settings, a window with data on the currently calculated position center of gravity is also displayed:

  • Latitude indicates the latitude of the center of gravity in degrees.

  • Longitude indicates the longitude of the center of gravity in degrees.

  • Samples indicates the current number of processed samples to the total number specified in the application settings.

The camera supports both portrait and landscape shooting.

The photo is taken by tapping the camera . Then the auto shutter will release with a countdown of approximately 5 seconds. The following conditions must be met to take a photo:

  • The device must have a sufficiently good reception of location data.

  • The user must not move and must stand still.

In addition, if center-of-gravity photography is permitted:

  • The center of gravity of the position must already be calculated or a predetermined number of samples must be collected for its calculation.

If any of these conditions are not met, a warning message will be displayed, shooting will not be enabled and the shooting button will not be available. If any of these conditions are violated during auto shutter release, the image will also be rejected.

Click the button image60.png to close the Camera mode and return to the previous screen.

Map#

The map is showing a group of photos of the logged in user (from sets of individual photos or photos within tasks and the currently recorded or already recorded paths

Fig. 29 The map photos and tracked paths

If location data is available, the current position will be marked on the map in the form of a blue dot

Forma9 . Button switches the map view to a satellite or a map view.

There is a black dot in the photo mode of the map at the location where the image was taken, with a small icon above it. The green circle determines the azimuth direction of the mobile device's screen at the time the photo was taken. Press the image icon to display an overview of the basic attributes of the image. You can record a path in the map view. Click the RECORD button, the dialog opens for entering a path name, which is optional. When this dialog is confirmed, the path will be recorded. The user can switch the application screens at will when recording the path, but the application must remain active. The path is recorded in the form of points, between which there is an approximate recording interval of 1 second. When recording, the path is simultaneously drawn on the map in the form of a black linearly angled curve. Each point on the curve is represented by a pin . When you click on it, an overview of its geolocation data is displayed. Click the STOP button to end the recording. The path is then drawn as a polygon, where the first and last points of the path are connected. Click the PATHS button to go to the list of already recorded paths (Paths), where you can select a path to draw it on the map. Fields id and name of the drawn path on the map (currently recorded or already recorded) are displayed in the overview next to the buttons for recording the route. Clicking in this report will move the map view to this path. In the application settings, you can turn on a sound tone when recording a path point and automatically pan the map view to the current location during recording.

Paths#

This list shows all recorded routes (Fig. 28). Clicking on a specific road will draw it on the map (M). Click on the SEND button to send all paths which has not been sent yet.

  • The Area attribute is an approximation of the area of a polygon formed by a path in square meters.

Fig. 30 Recorded paths list

Every path can be exported to a KML file on the phone with the respective “KML” button.

GNSS SkyMap#

This section let you view the expected sky map of satellites.

A constellation drop-down menu let you choose a constellation to view and the graph updates accordingly.

The points in blue represent the calculated satellites position.

Fig. 31 GNSS SkyMap

About#

This screen contains basic information about the application (Fig. 30).

Fig. 32 About screen

Settings#

The screen provides the main settings of the entire application (Fig. 31).

Fig. 33 Settings Screen

  • Photo with centroid location computation
  • When capturing an image, location center of gravity information will be added to its metadata.
  • Centroid Sampling Number

  • Sets the number of samples required to calculate the position center of gravity.

  • Click the Default button to set the default number.

Clicking the SET DEFAULT VALUES button returns all filter values to the default.

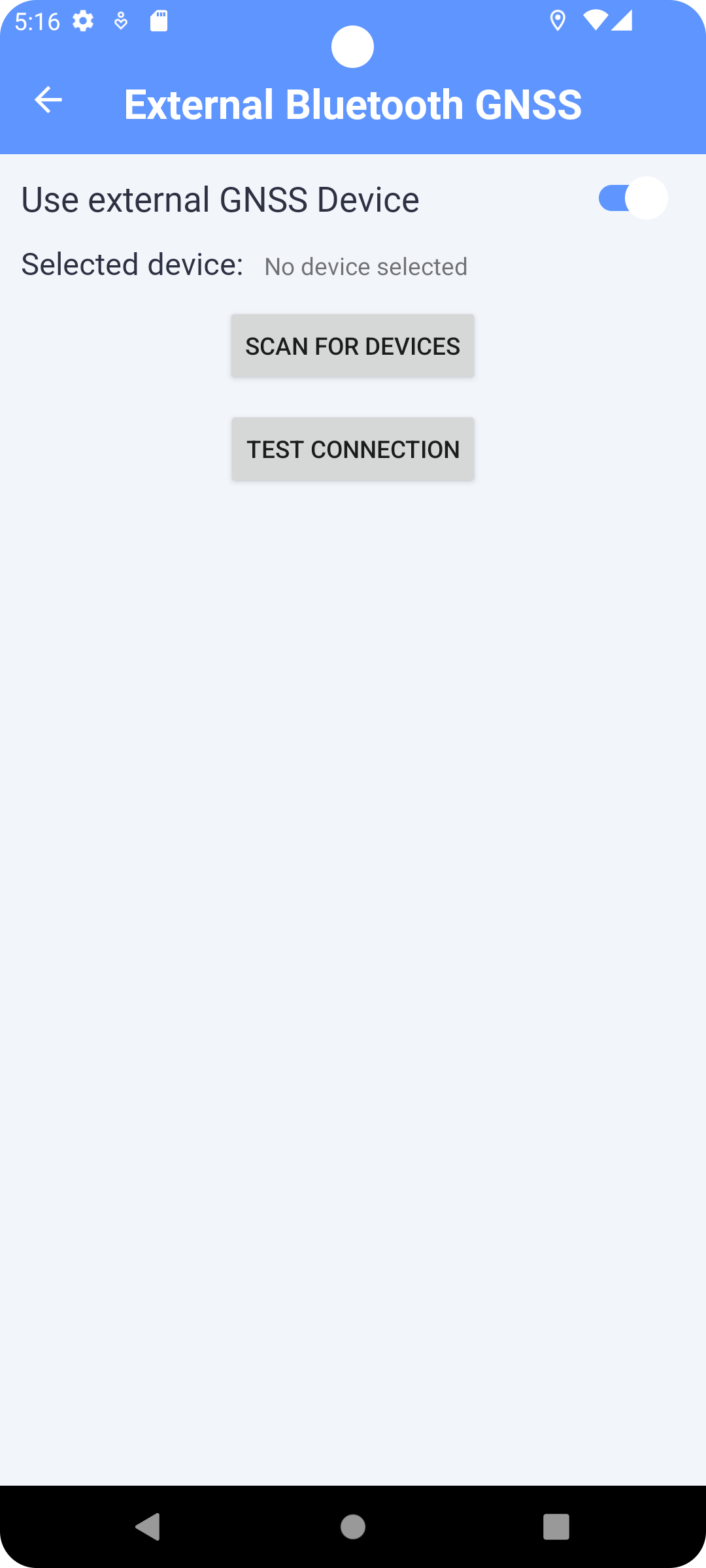

External Bluetooth GPS / GNSS#

This section allows to scan for an external GPS Device and pair it to your application to use it as the source of the location.

The button SCAN DEVICES allow you to start scanning for devices, a list of devices detected will appear. After choosing a device, you can press TEST CONNECTION to test if the device is connected AND compatible with the application.This setting is saved and the device data will be used for all location instances in the application (map, tracking and photo).

Fig. 19 External Bluetooth GPS

Offline Usage#

Once you have logged in, it is possible to operate in offline mode. Some services, such as Skyview and maps, will not be available, but you will still be able to record paths or take geolocated photos, and the data can be sent once the device is back online.

Software Development#

PIC2BIM (EGNSS4ALL) is a geotagging photo mobile phone application, which is Open-Source for see following Readme iOS-Developer and Android-Developer. Web-Console

Initially developed by EU Space Programme see http://egnss4cap.eu/ for more information, now being maintained and developed by PIC2BIM.
